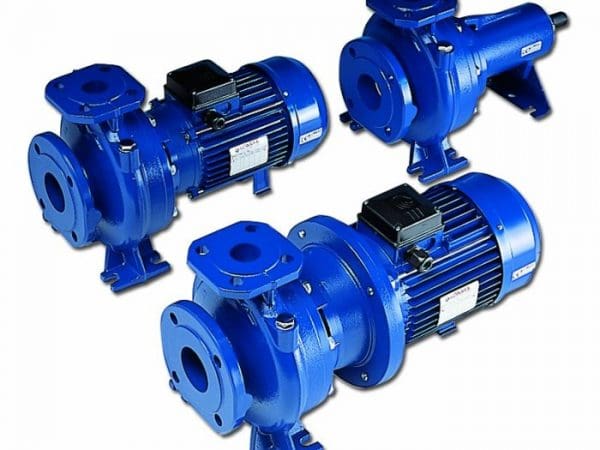

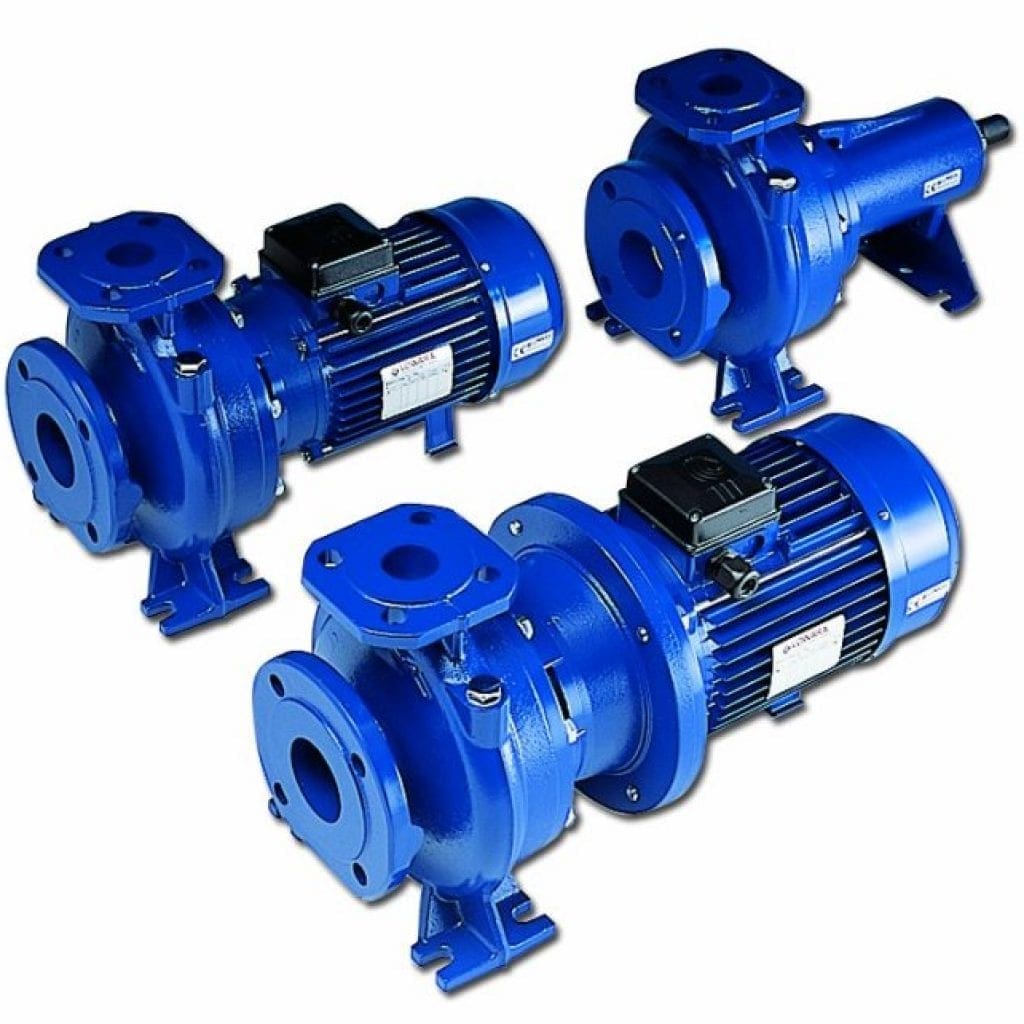

FH Series
Overview
Cast iron pump body and AISI 316L stainless steel, laser-technology welded impeller. Suitable for pumping hot and cold, moderately aggressive liquids.
Suitable for applications in water circulation, pressure boosting, water supply and HVAC
Available models:
FHE Close-coupled with special motor shaft extension.
FHS With stub shaft and standard motor.
FHF With flexible coupling, adapter, base and standard motor in compliance with EN 733 – DIN 24255.
Specifications
- Delivery up to 700 m³/h
- Head up to 100 m
- Power Supply both single and three-phase 50 and 60 Hz
- Power from 0.25 kW up to 132 kW
- Maximum Operating Pressure 16 bar
- Temperature of Pumped Liquid from -30 °C to 120 °C
