e-NSC Series
Overview
Cast iron pump body and AISI 316L stainless steel, laser-technology welded impeller. Suitable for pumping hot and cold, moderately aggressive liquids. This range is designed in compliance with EN 733 – DIN 24255.
Suitable for applications in water circulation, pressure boosting, water supply and HVAC.
Available models:
e-NSCE Close-coupled with special motor shaft extension.
e-NSCS With stub shaft and standard IEC motor.

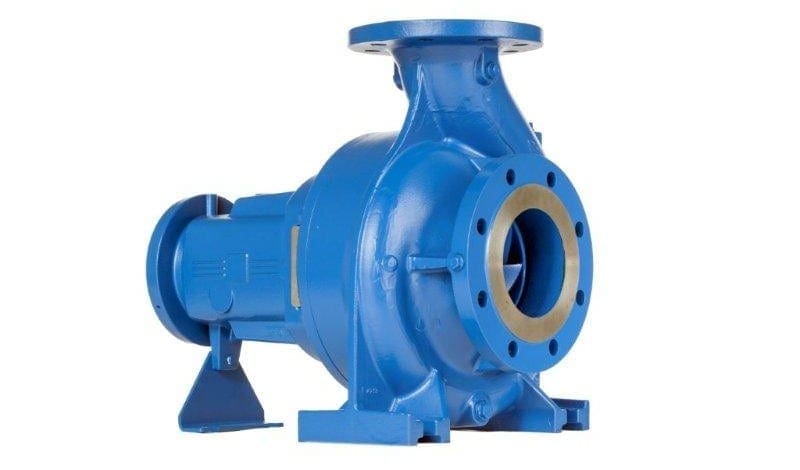

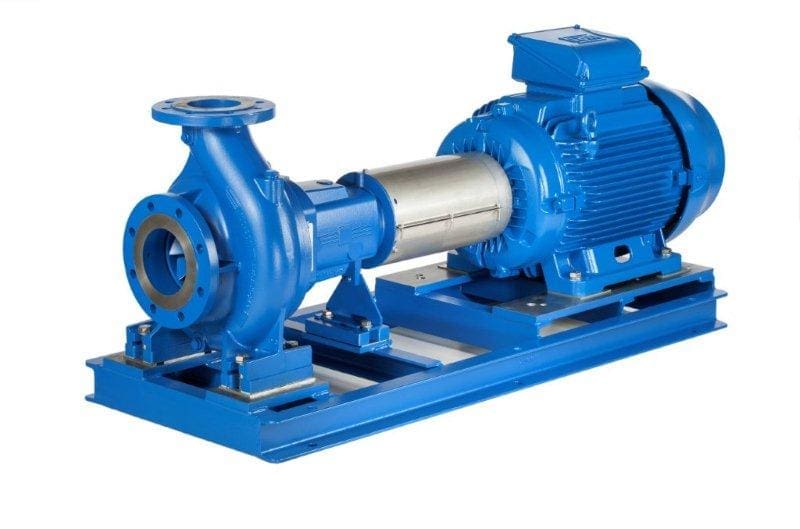

e-NSCF With flexible coupling, adapter, base and standard IEC motor
Specifications
- Delivery up to 1800m3/hr
- Heads up to 160m
- Power supply three phase
- Motor power from 0.25kW to 355kW
- Temperature of pumped liquid to 140oC
