CO / SHO Series
Overview

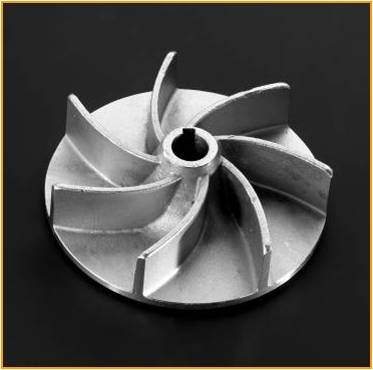

These pumps combine the advantages of an open impeller with those of the AISI 316 stainless steel construction, which is particularly suited for handling moderately aggressive liquids with suspended solids.
Available models:

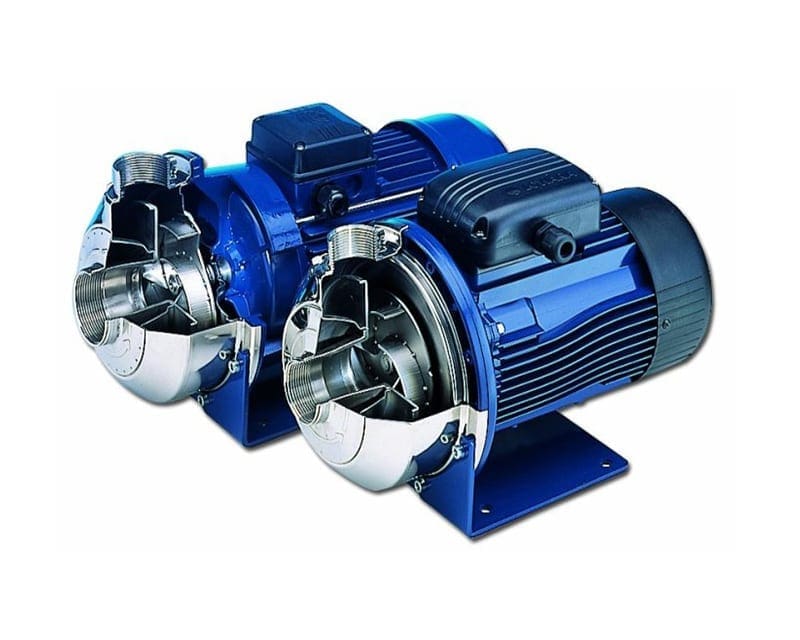

CO Close-coupled with special motor shaft extension.
SHOE Close –coupled with special motor shaft extension

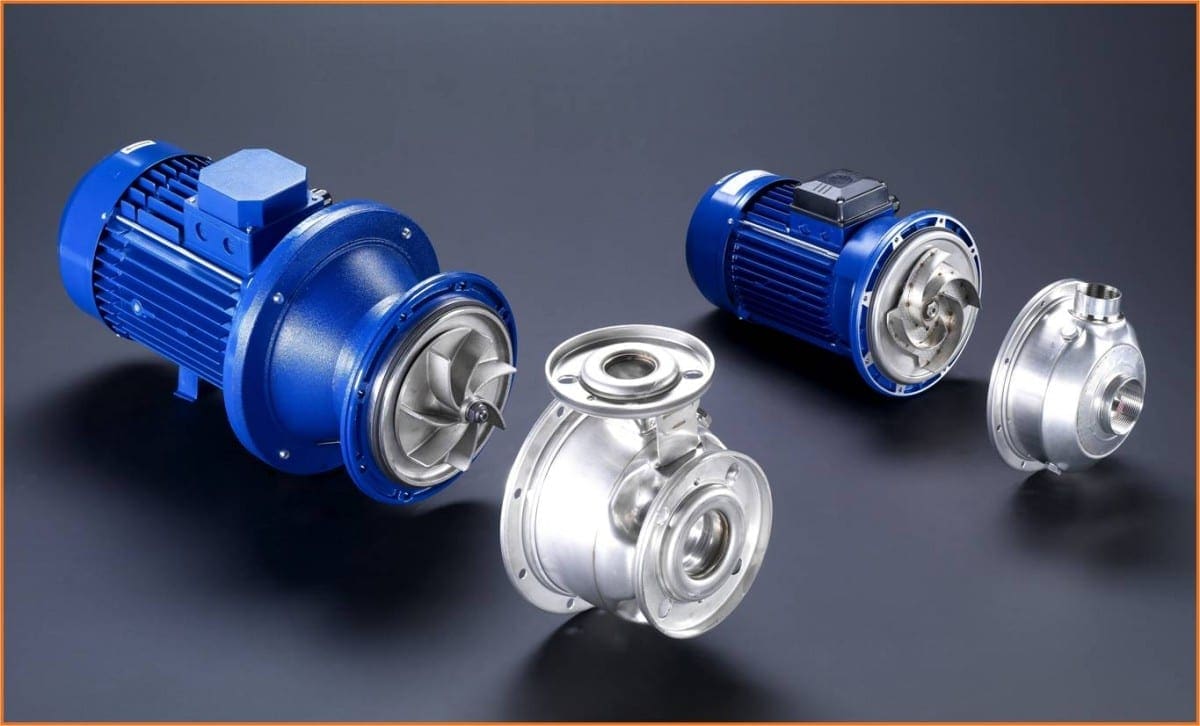

SHOS With stub shaft and standard motor.

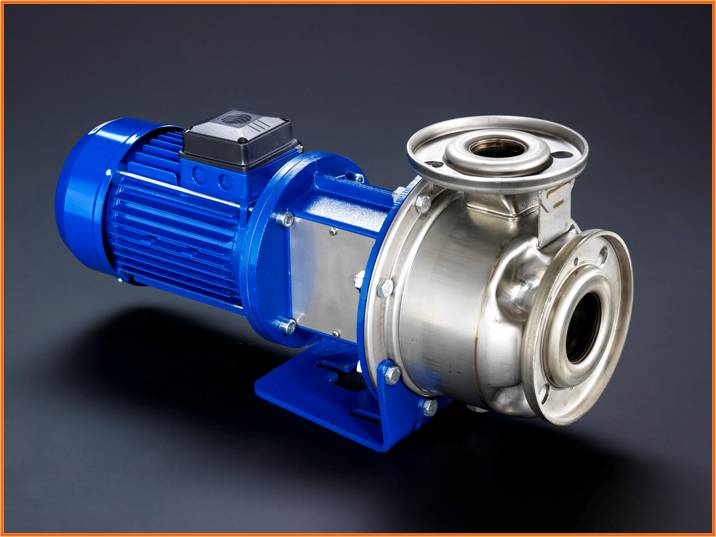

SHOD With stub shaft, standard motor and double mechanical seal
Specifications
- Delivery up to 56 m³/h
- Head up to 56 m
- Power Supply both single and three-phase 50 and 60 Hz
- Power from 0.37 kW up to 3 kW (CO) and 11kW (SHO)
- Maximum Operating Pressure 8 bar
- Temperature of Pumped Liquid from -10 °C to 120 °C
- Free Passage up to 20 mm (CO) and 40mm (SHO)
