BG Series

Overview

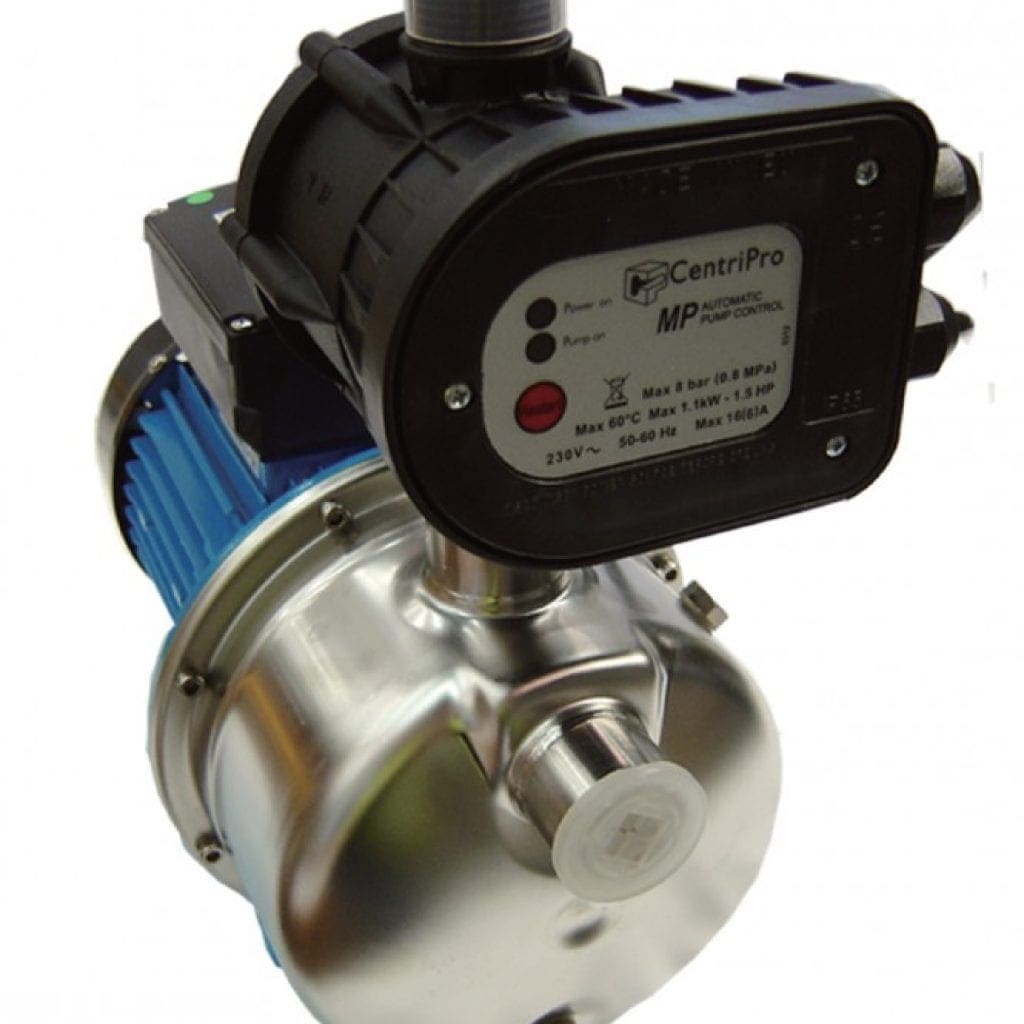

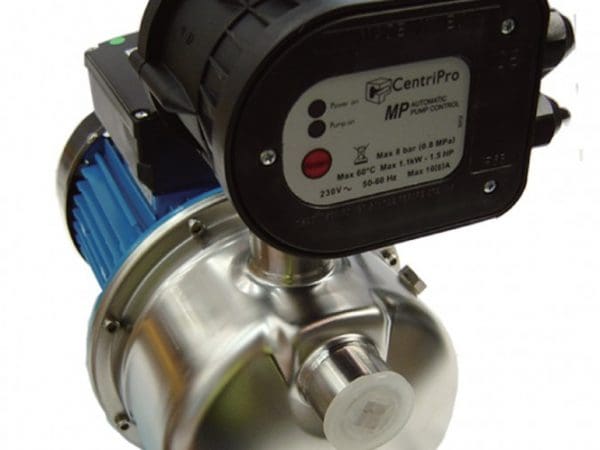

The Goulds BGR series is a self priming shallow well jet pump for handling clean water in domestic applications. It has a robust design with a pressed stainless steel casing and aluminium motor casing.

The BGR is available in three sizes and can be supplied with an automatic pressure controller or as a bare pump

All components in contact with the water are AS/NZS4020 approved.

Specifications
  • Deliveryup to 31 m³/h
  • Headup to 62 m
  • Power Supplyboth single and three-phase 50 and 60 Hz
  • Powerfrom 0.37 kW to 3 kW
  • Maximum Operating Pressure8 bar
  • Temperature of Pumped Liquid from -10 °C to 110 °C
