e-HM Series

Overview

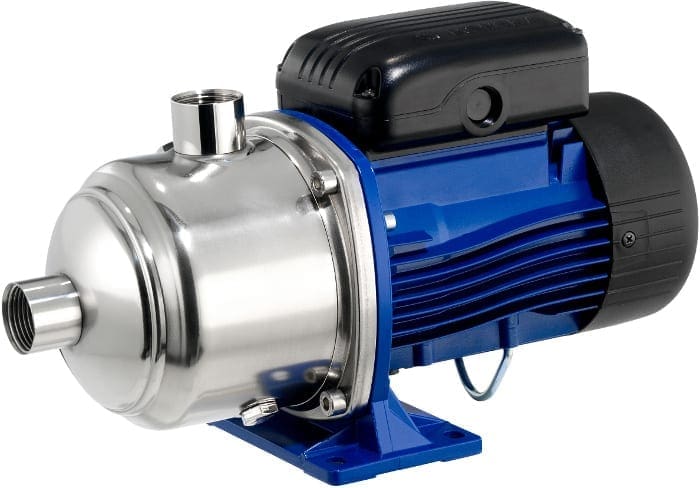

The NEW e-HM series is a modern, robust designed pump offering:

  • State-of-the-art hydraulics with best-in class efficiency combined with IE3 motors mean the lowest possible operating costs.
  • Thick sheet metal casing, high-quality bearings and stainless steel guarantees a long service life.
  • High-efficiency hydraulics, motor and thick sheet metal pump body keep the noise level to a minimum.

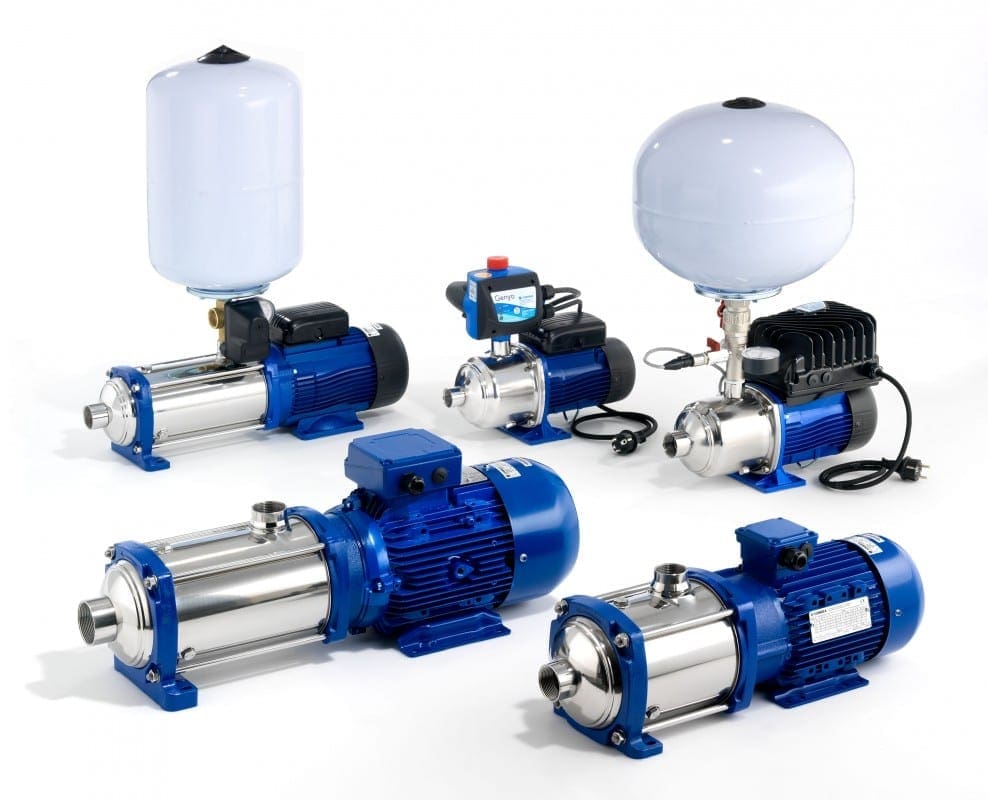

e-HM Residential: reliable water supply for most buildings; from family houses up to 10 floor apartment buildings. The new e-HM is available in different versions

  • Bare pump
  • On/ off system with pressure switch and pressure tank
  • Semi constant pressure system with Genyo electronic pump controller
  • Constant pressure system with Teknospeed variable speed controller

e-HM Industrial: full offering for numerous applications including washing & cleaning, water treatment and food & beverage industries.

  • AISI 304 or 316
  • Electro-polished
  • Compact and high efficiency versions
  • Mechanical face seal and o-ring options
Specifications
  • Delivery up to 29 m³/h
  • Head up to 160 m
  • Power Supply both single and three-phase 50 and 60 Hz
  • Power from 0.30 kW up to 5.50 kW
  • Maximum Operating Pressure 16 bar
  • Temperature of Pumped Liquid from -10 °C to 120 °C
