Trident Series

Overview

The Filtersafe TRIDENT Automatic Screen filters are reliable filters that work hard for you and are designed for near-zero maintenance. The Trident provides an uninterrupted supply of clean filtered water even during the flushing cycle.

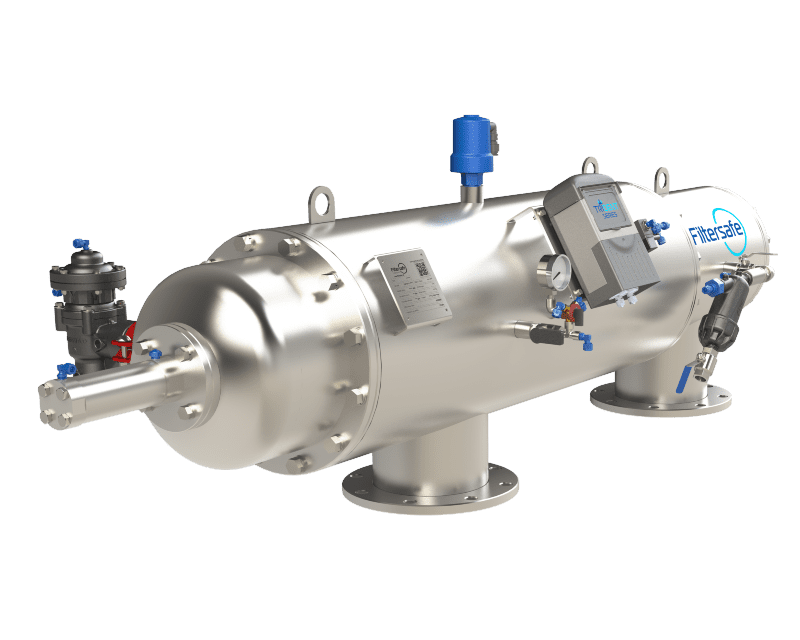

The TRIDENT H Automatic Hydraulic Filter is your ideal filter option when filtration is required away from conventional power sources. The reliable Turbine Drive System utilized a helical scanner with large sized nozzles to fully clean our Smartweave 4 layer sintered screen. The Trident H series also boasts low water use and low 2 bar minimum operating pressure.

Specifications

Specifications:

  • Up to 600 m3/h Max. Flow Rate
  • 80 – 500 μm Filtration Degree
  • 10 bar Operating Pressure
  • Less than 1% Backwash Water Consumption
  • 2 bar (30 psi) Min. Operating Pressure
  • Up to 12,000 cm2 filter area
  • AD 2000 Design code
  • Temp 65°C
