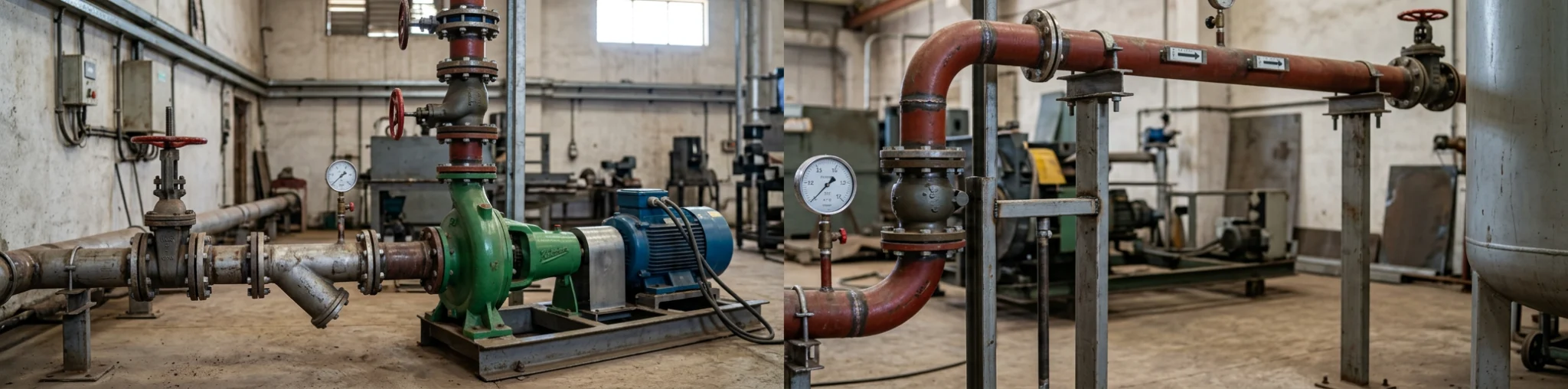

How to Calculate Total Dynamic Head for Pump Sizing

A pump duty requirement starts with a defined system and a defined flow. Total dynamic head, or TDH, is the head the pump must add at that flow to move liquid between the chosen suction and discharge conditions. It is not simply the vertical distance between two points. Elevation matters, but so do pressure, pipe resistance, fittings and, where relevant, changes in velocity.

That distinction matters before a pump curve is opened. A calculation based only on lift can miss pressure at a vessel, friction through a long discharge main, or suction-side conditions that affect whether the pump can operate reliably. A sound total dynamic head calculation therefore follows the liquid from a clearly stated starting boundary to a clearly stated finishing boundary, at the operating condition the system is expected to meet.

This pump sizing guide is useful for engineers, contractors, consultants, project managers and operators preparing a duty requirement for water transfer, pressure boosting, irrigation, drainage or process systems. It complements the broader pump-system design factors that should be considered before equipment is selected.

Start with the boundary and the design condition

The most reliable way to calculate TDH is to decide what system the pump is being asked to serve before assigning values to a formula. Select a suction boundary and a discharge boundary that describe the actual duty. For an open tank to open tank transfer, those may be the normal liquid surfaces. For a pressurised vessel, a manifold or process equipment, they may be defined pressure and elevation points. State the design flow at the same time.

This boundary-to-duty-point approach prevents using a pump centreline as though it were automatically the whole system boundary, or combining losses and pressures from different operating cases. A duty based on one tank level, another vessel pressure and a third flow rate cannot be checked against a pump curve.

Record normal and limiting levels where they can change the requirement. A falling source level can increase suction lift, a high destination level can increase elevation head, and a pressure-controlled line can differ from an open discharge. The selected design condition should be reproducible and identify its scenario.

For a closed loop, do not assume elevation automatically disappears. Opposing changes can balance, while friction may form much of the load, but a pressurised boundary, unequal liquid levels or a vessel can still create a pressure or static component.

Separate each part of the total head

At the defined design flow, a general metric energy relationship can be written as:

TDH = static elevation head difference + pressure head difference + friction and minor losses + velocity head difference

In a more symbolic form:

TDH = (z₂ – z₁) + (P₂ – P₁)/(ρg) + hL + (v₂² – v₁²)/(2g)

Here, z is elevation, P is pressure, ρ is liquid density, g is gravitational acceleration, hL represents friction and minor losses, and v is average liquid velocity at the selected boundary. Use either absolute or gauge pressure consistently for both boundary points. The purpose is not to force every system into one shortcut, but to make each contribution visible and traceable.

Static elevation head: compare levels, not pipe length

Static elevation head is the vertical difference between the selected suction and discharge reference levels. It does not depend on pipe route length. A pipe may rise, fall and rise again, but the net elevation contribution between the chosen boundaries comes from their final vertical difference.

In an open source with a pump above the liquid level, the suction condition is a lift that the pump must overcome. In a flooded suction arrangement, the liquid level is above the pump suction and assists the suction condition. The general equation handles this through the signs at the reference points. Keeping the boundary elevations and pump centreline on the worksheet makes the sign convention easier to review.

The pump centreline may be necessary for assessing suction lift and NPSH, but TDH must still follow the stated start and end boundaries. This separation matters where reservoir level varies or a discharge connection is under pressure.

Pressure head: include what the boundary sees

Pressure head translates a pressure difference into an equivalent liquid head. If liquid leaves an atmospheric tank and enters a pressurised vessel, the vessel pressure is part of the duty. If both selected boundaries are exposed to the same atmosphere, their pressure terms may cancel. The calculation must show why, rather than treating pressure as absent by default.

Density, specific gravity, temperature, viscosity and solids can affect the energy balance, friction assessment and equipment suitability. Identify the liquid and its condition rather than import assumptions from another service.

Friction and minor losses: calculate at the intended flow

Friction head is the head required to overcome resistance through pipe and fittings. It includes straight-pipe losses as well as the losses caused by bends, tees, valves, strainers, filters, heat exchangers and other components that resist flow. Minor describes the conventional category, not necessarily an unimportant loss. A restrictive valve or dirtyable component can be material to the duty.

Losses are flow dependent. They must be calculated at the intended flow using the actual pipe material, internal diameter, installed lengths and component details. Nominal pipe size is not a substitute for internal diameter, and a route drawing alone does not establish fitting or valve losses. Where the system has parallel branches, bypasses or variable controls, assess the relevant operating path rather than adding all losses indiscriminately.

Static and pressure contributions may be relatively constant for a defined condition, while friction changes as flow changes. Mapping that relationship shows where system demand intersects a pump curve. If the arrangement points towards a surface-mounted centrifugal or multistage unit, compare the duty with the appropriate surface pump range and current manufacturer curves, not a model name selected from head alone.

The current APT Water product navigation spans surface, submersible, multistage and drainage pumps as well as controls and packaged systems. That breadth is why a clear duty record should precede category or model selection.

Velocity head: retain it when the boundary conditions differ

Velocity head is expressed as v²/(2g). In some pumping arrangements it is small, or the two selected boundary velocities are alike enough that their difference has little effect. It is still part of a complete energy balance where the boundary velocities differ materially, such as a transition from a large vessel surface to a smaller flowing connection.

The term is a difference, not a second friction allowance. If both boundaries are large free surfaces, their velocities can usually be treated as negligible when that matches the actual configuration.

Use a symbolic worksheet before entering project data

A symbolic method makes the calculation reviewable without pretending that generic figures are suitable for a particular installation. Set up a worksheet for the selected duty condition, retain units throughout, and enter project values only after their source is known. The process below is deliberately sequential.

1. Name the operating case and set the flow. Record the required design flow, the expected operating range and whether the case represents normal, high-demand, low-level or another defined scenario. Use the same flow for the friction and component-loss work.
2. Draw the two calculation boundaries. Mark boundary 1 at the suction side and boundary 2 at the discharge side. Note the relevant liquid levels, pipe connections or pressure interfaces, plus their elevations against a nominated datum.
3. Write the elevation and pressure terms. Enter (z₂ – z₁) and (P₂ – P₁)/(ρg). State whether pressures are gauge or absolute and apply that choice at both boundaries. Record the fluid density used.
4. Build the loss path. List each suction and discharge pipe section with material, actual internal diameter and length. Add fittings, isolating and control valves, non-return valves, strainers, filters, branches and equipment that impose loss. Determine hL at the chosen flow with applicable project data.
5. Check boundary velocities. Calculate the two boundary velocities from the relevant flow area. Add (v₂² – v₁²)/(2g) only as the boundary velocity difference, with its sign.
6. Sum the terms into TDH. Keep the component lines visible, then add them to obtain the system head required at that design flow. If several conditions matter, repeat the worksheet for each one rather than averaging incompatible cases.
7. Compare duty against curves, then check suction conditions. Plot or compare the required flow and TDH with the correct pump curve, speed and impeller configuration. The operating point is determined by the system and pump curves at the design condition. It is not a pump selection by itself, and the NPSH check remains separate.

This workflow produces a useful handover package: boundary sketch, assumptions, loss schedule, fluid information, calculation sheet and manufacturer curve references. APT Water identifies flow, head, power source, pipe size, pipe type and run lengths among its selection criteria. Once assembled, the duty record can support a project-specific discussion without being treated as final design approval.

Build the duty point, then perform the separate NPSH check

TDH describes the energy the pump must add to meet the flow requirement between the selected boundaries. It does not establish whether pressure at the pump suction is sufficient to avoid vapour formation. That is the role of net positive suction head, or NPSH.

NPSH available, NPSHA, is evaluated at the pump suction as the absolute head above the liquid vapour pressure. Source level and pressure can contribute to it, while suction piping friction reduces it. Temperature matters because vapour pressure changes with temperature. The manufacturer supplies NPSH required, NPSHR, for the specific pump and operating condition.

Compare the calculated site NPSHA with current manufacturer NPSHR using the relevant duty and apply the project’s required margin and review criteria. Do not add an NPSH margin into TDH as if it were another discharge loss. They answer different questions: TDH establishes the head the system requires, while NPSH assesses suction-side availability and cavitation risk.

The pump curve also needs an operating-region review. Reliability is generally strongest near the best efficiency point, but acceptable and preferred operating regions are manufacturer-defined and pump-specific. A calculated TDH and flow should therefore be considered with pump curve, speed, impeller configuration, efficiency, fluid compatibility, controls and the intended operating range. It should not be used to claim a model is suitable or that a final duty has been engineered without the remaining project checks.

Prepare the information needed for a selection discussion

Before progressing from calculation to a project-specific pump discussion, assemble a concise duty record. The aim is to ensure the same condition is understood by the people reviewing hydraulic, mechanical and control requirements.

• Required design flow and expected operating range.
• Suction source, discharge destination, normal and limiting liquid levels, and pump centreline or nominated datum.
• Suction and discharge pressures at the chosen boundaries.
• Fluid type, temperature, density or specific gravity, viscosity and solids where relevant.
• Pipe materials, actual internal diameters, lengths, elevations and all loss-producing components.
• Control mode, bypasses, parallel branches and future operating scenarios.
• Current manufacturer pump curves at the correct speed and impeller configuration.
• Manufacturer NPSHR data and calculated site NPSHA at the design condition.

This record allows a reviewer to challenge assumptions early, especially around levels, pressure conditions and losses that may change after installation details are developed. For applications that need help connecting the calculation to equipment and system scope, APT Water publishes pump selection and system-design support centred on application requirements. The published information is a starting point for a conversation, not a substitute for the project’s hydraulic and engineering review.

Frequently asked questions

Is total dynamic head the same as vertical lift?

No. Vertical elevation is one part of TDH. Pressure differences, friction and minor losses, and any applicable velocity-head difference also contribute to the energy the pump must add at the selected flow.

Does friction loss change with flow?

Yes. Pipe and component losses are flow dependent, so calculate them at the intended flow with the actual pipe and installed components. A different flow can produce a different system-head requirement.

Is NPSH included in TDH?

No. NPSH is a separate suction-side availability check. NPSHA is assessed at the pump suction and compared with manufacturer NPSHR; it is not another term to append to the TDH result.

Can TDH alone select a pump?

No. Flow and TDH define a key duty point, but fluid properties, operating range, NPSH, efficiency, materials, controls and application constraints also need consideration. Final project selection should use current manufacturer data and the applicable engineering review.

Turn a transparent calculation into a usable duty requirement

A clear TDH calculation begins with boundaries and a design flow, separates elevation, pressure, losses and velocity, then carries the result to the pump and system curves. It avoids the false certainty of a lift-only estimate and keeps the assumptions available for review as the installation develops.

When the duty record is complete but the application needs project-specific input, discuss the application requirements with APT Water. Bring the boundary sketch, flow cases, fluid details, pipe schedule, calculated TDH and NPSH information so the discussion can begin from the actual system conditions.
